INJECTION VESTIGE: T3
NOZZLES FOR DIRECT INJECTION ON THE PART
- YES: frequent color change
- YES: intense colours
- NO: plastics leaving stringings / droolings while mould opens. .
- NO: plastics with melting temperature higher than 250°C (single cavity applications)
- NO: plastics with melting temperature higher than a 270°C (multi cavity applications)
- NO: abrasive reinforcements
| Code | C - L | 1 | 2 | T(2) | 4/1 | * |
|---|---|---|---|---|---|---|
| UGDL3712MA | C=67 L=85 | UGDL362CM | REPNSP5001 | S151051000J | UGPUDL37CU | Z=0,22 |
| UGDL3712SA | C=67 L=85 | UGDL362CS | REPNSP5001 | S151051000J | UGPUDL37CU | Z=0,22 |
| UGDL3713MA | C=97 L=115 | UGDL363CM | REPNSP5002 | S151051000J | UGPUDL37CU | Z=0,30 |
| UGDL3713SA | C=97 L=115 | UGDL363CS | REPNSP5002 | S151051000J | UGPUDL37CU | Z=0,30 |
| UGDL3714MA | C=127 L=145 | UGDL364CM | REPNSP5003 | S151551000J | UGPUDL37CU | Z=0,37 |
| UGDL3714SA | C=127 L=145 | UGDL364CS | REPNSP5003 | S151551000J | UGPUDL37CU | Z=0,37 |
| UGDL3715MA | C=177 L=195 | UGDL365CM | REPNSP5004 | S152051000J | UGPUDL37CU | Z=0,50 |
| UGDL3715SA | C=177 L=195 | UGDL365CS | REPNSP5004 | S152051000J | UGPUDL37CU | Z=0,50 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2 = Coil heater
T(2) = J Termocouple
4 = Cu-Be Tip

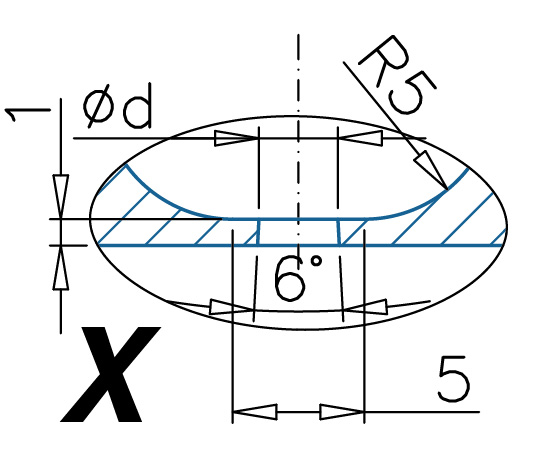

ØC = Standard: 9 on request 10
Ød = standard: 1,6 ÷ 1,7 - on request: 1,0 ÷ 4,5
* = Elongation (nozzle temperature - mould temperature = 200°C))
O-Ring on request
