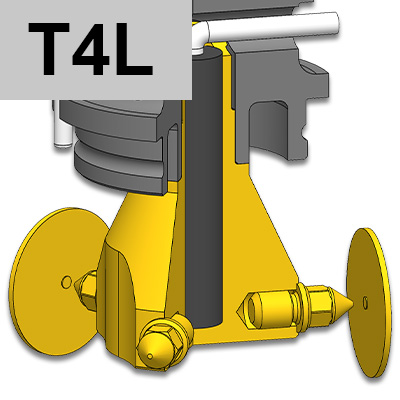

INJECTION VESTIGE: T4L
LATERAL MULTI-POINT, SINGLE TORPEDO NOZZLES.
- YES: injecting more parts with one only nozzle
- YES: more than one gate vestige on the same part
- YES: cariche abrasive (scegliere puntale 4/0)
- NO: SINGLE CAVITY applications
- NO: colour change
| Code | C - L | 1 | 4/0 - 1/2/3/4P | 4/1 - 1/2/3/4P | 8 | |
|---|---|---|---|---|---|---|
| UGGSL4010 | 1/2/3/4 M 0/1 | C=41 L=66 | UGCRG40 | UGPML401 1/2/3/4 | UGPML411 1/2/3/4 | 0950044B0300X |
| UGGSL4020 | 1/2/3/4 M 0/1 | C=53 L=78 | UGCRG40 | UGPNA402 1/2/3/4 | UGPML412 1/2/3/4 | 0950051B0300X |
| UGGSL4030 | 1/2/3/4 M 0/1 | C=65 L=90 | UGCRG40 | UGPML403 1/2/3/4 | UGPML413 1/2/3/4 | 0950064B0350X |
| UGGSL4040 | 1/2/3/4 M 0/1 | C=77 L=102 | UGCRG40 | UGPML404 1/2/3/4 | UGPML414 1/2/3/4 | 0950076B0400X |
1 = Nozzle body
4/0 = Tempered steel Multipoints torpedo with No. 1-2-3-4 tips
4/1 = Cu-Be Multipoints torpedo with No. 1-2-3-4 tips
8 = Cartridge heater with J type TC
S = Anti-rotation dowel pin

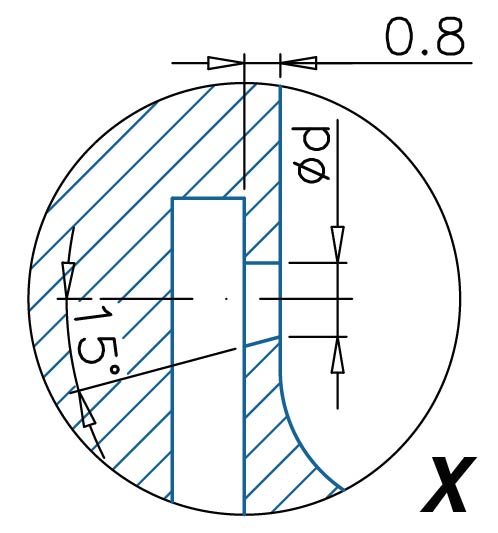

Ød= Standard : 0,6 ÷ 1,0
ØD= Standard: 32,0 - on request: 24 ÷ 38
