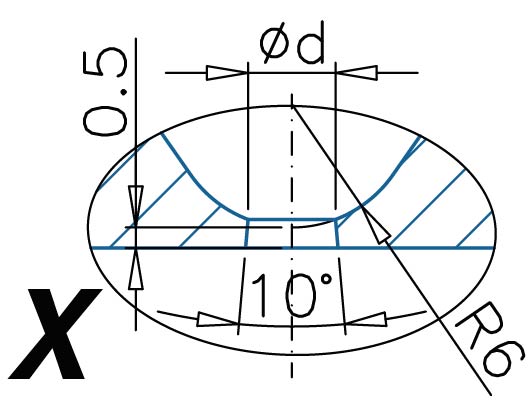

INJECTION VESTIGE: T3
NOZZLES FOR DIRECT INJECTION ON THE PART
- YES: frequent color change
- YES: intense colours NO - plastics leaving stringings /droolings while mould opens.
- NO: plastics with melting temperature higher than 250°C (single cavity applications)
- NO: plastics with melting temperature higher than a 270°C (multi cavity applications)
- NO: abrasive reinforcements
| Code | C - L | 1 | 2 | T(2) | 4/1 | * |
|---|---|---|---|---|---|---|
| UGDL5412MA | C=50 L=78 | UGDL512CM | REPNSPDL32 | S151051000J | UGDL3500P | Z= 0,17 |
| UGDL5412SA | C=50 L=78 | UGDL512CS | REPNSPDL32 | S151051000J | UGDL3500P | Z= 0,17 |
| UGDL5413MA | C=70 L=98 | UGDL513CM | REPNSPDL33 | S151051000J | UGDL3500P | Z= 0,22 |
| UGDL5413SA | C=70 L=98 | UGDL513CS | REPNSPDL33 | S151051000J | UGDL3500P | Z= 0,22 |
| UGDL5414MA | C=90 L=118 | UGDL514CM | REPNSPDL34 | S151551000J | UGDL3500P | Z= 0,27 |
| UGDL5414SA | C=90 L=118 | UGDL514CS | REPNSPDL34 | S151551000J | UGDL3500P | Z= 0,27 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2 = Coil heater
T(2) = J Termocouple
4 = Cu-Be Tip
ØC = Standard: 6
Ød = standard: 1,5 ÷ 1,7 - on request: 0,6 ÷ 3.2
* = Elongation (nozzle temperature - mould temperature = 200°C)
O-Ring on request
