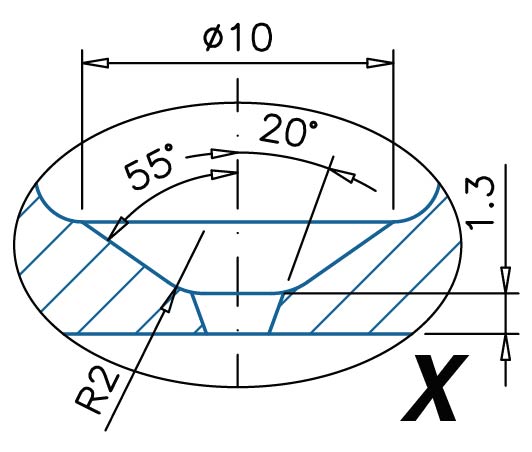

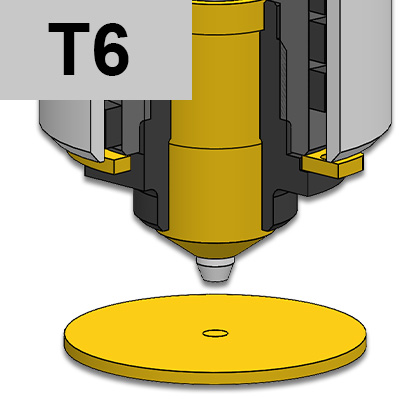

INJECTION VESTIGE: T6
Direct injection nozzles for MULTI CAVITY applications. With needle valve activated by OUTER HYDRAULIC PISTON.
Suitable for:
-excellent aesthetic finish of the injection point
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 | 4 - 0/1 | 7 |
|---|---|---|---|---|---|---|---|
| UGET4011A0 | L=74 C=54 | UGCR4001M | REPNSP4001 | S151051000J | UGBC440 | UGPU45TZ | UGACOR11 |
| UGET4011A1 | L=74 C=54 | UGCR4001M | REPNSP4001 | S151051000J | UGBC440 | UGPU45CU | UGACOR11 |
| UGET4012A0 | L=104 C=84 | UGCR4002M | REPNSP4002 | S151051000J | UGBC440 | UGPU45TZ | UGACOR11 |
| UGET4012A1 | L=104 C=84 | UGCR4002M | REPNSP4002 | S151051000J | UGBC440 | UGPU45CU | UGACOR11 |
| UGET4013A0 | L=134 C=114 | UGCR4003M | REPNSP4003 | S151551000J | UGBC440 | UGPU45TZ | UGACOR11 |
| UGET4013A1 | L=134 C=114 | UGCR4003M | REPNSP4003 | S151551000J | UGBC440 | UGPU45CU | UGACOR11 |
| UGET4014A0 | L=184 C=164 | UGCR4004M | REPNSP4004 | S152051000J | UGBC440 | UGPU45TZ | UGACOR11 |
| UGET4014A1 | L=184 C=164 | UGCR4004M | REPNSP4004 | S152051000J | UGBC440 | UGPU45CU | UGACOR11 |
| UGET4015A0 | L=234 C=214 | UGCR4505M | REPNSP4005 | S152551000J | UGBC440 | UGPU45TZ | UGACOR11 |
| UGET4015A1 | L=234 C=214 | UGCR4505M | REPNSP4005 | S152551000J | UGBC440 | UGPU45CU | UGACOR11 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Opened bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET04UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET04TT-DLC Needle valve Ø4
with wear-resistant coating (length to be defined)
11= UGTLRUPIK4 Hydraulic piston kit
(piston UGTLRUPIW + needle valve support UGET04ST-M10 + N.2 fittings UGTLRUPIRC)
ØC = Standard : 9 - On request: 10
Ød = standard: 1,0 ÷ 3,0
