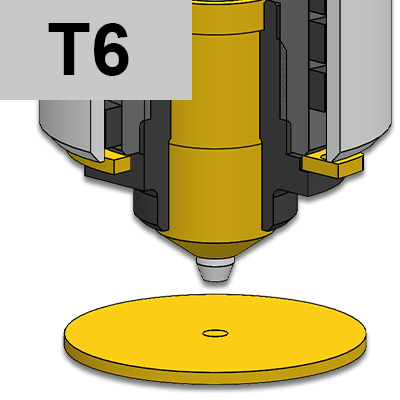

INJECTION VESTIGE: T6
Direct injection nozzles for MULTI CAVITY applications. With needle valve activated by OUTER HYDRAULIC PISTON.
Suitable for:
-excellent aesthetic finish of the injection point
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Codice | L - C | 1 | 2 | T(2) | 3 | 4 - 0/1 | 7 |
|---|---|---|---|---|---|---|---|
| UGET5011A0 | L=74 C=54 | UGCR5001M | REPNSP5001 | S151051000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5011A1 | L=74 C=54 | UGCR5001M | REPNSP5001 | S151051000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5012A0 | L=104 C=84 | UGCR5002M | REPNSP5002 | S151051000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5012A1 | L=104 C=84 | UGCR5002M | REPNSP5002 | S151051000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5013A0 | L=134 C=144 | UGCR5003M | REPNSP5003 | S151551000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5013A1 | L=134 C=144 | UGCR5003M | REPNSP5003 | S151551000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5014A0 | L=184 C=164 | UGCR5004M | REPNSP5004 | S152051000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5014A1 | L=184 C=164 | UGCR5004M | REPNSP5004 | S152051000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5015A0 | L=234 C=214 | UGCR5005M | REPNSP5005 | S152551000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5015A1 | L=234 C=214 | UGCR5005M | REPNSP5005 | S152551000J | UGBC550 | UGPU55CU | UGACOR14 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Opened bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET05UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET05TT-DLC Needle valve Ø5
with wear-resistant coating (length to be defined)
11= UGTLRUPIK5 Hydraulic piston kit
(piston UGTLRUPIW + needle valve support UGET05ST-M10 + No.2 fittings UGTLRUPIRC)

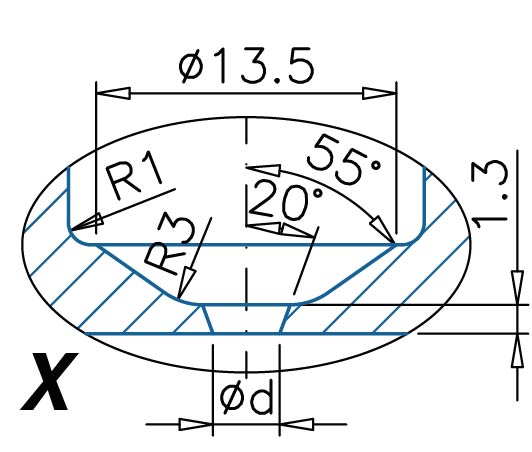

ØC = Standard : 12 - On request: 13
Ød = Standard: 2,0 ÷ 4,0
