INJECTION VESTIGE: T6B / T6BP

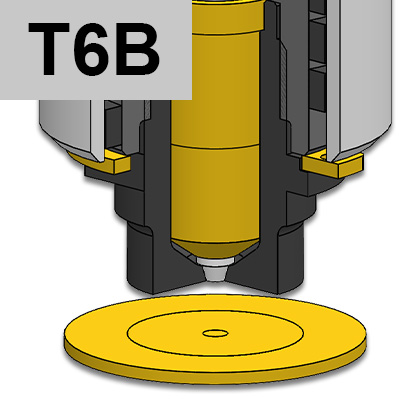

Direct injection nozzles for MULTI CAVITY applications. With needle valve activated by OUTER HYDRAULIC PISTON.
Suitable for:

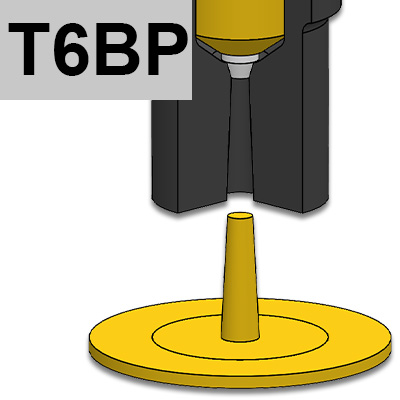

- excellent aesthetic finish of the injection point (T6BP only suitable for injection on sprues)
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 7 | |
|---|---|---|---|---|---|---|---|---|
| UGET4111A 0/1 | L=74 C=54 | UGCR4001M | REPNSP4001 | S151051000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4111AP 0/1 | L=74 C=54 | UGCR4001M | REPNSP4001 | S151051000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4112A 0/1 | L=104 C=84 | UGCR4002M | REPNSP4002 | S151051000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4112AP 0/1 | L=104 C=84 | UGCR4002M | REPNSP4002 | S151051000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4113A 0/1 | L=134 C=114 | UGCR4003M | REPNSP4003 | S151551000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4113AP 0/1 | L=134 C=114 | UGCR4003M | REPNSP4003 | S151551000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4114A 0/1 | L=184 C=164 | UGCR4004M | REPNSP4004 | S152051000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4114AP 0/1 | L=184 C=164 | UGCR4004M | REPNSP4004 | S152051000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4115A 0/1 | L=234 C=214 | UGCR4005M | REPNSP4005 | S152551000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4115AP 0/1 | L=234 C=214 | UGCR4005M | REPNSP4005 | S152551000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Closed bushing
3/P = Bushing with machinable prolungation
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = Needle valve sealing (wear-resistant coating)
10 = Needle valve Ø5 (wear-resistant coating) *Length to be defined
11= Hydraulic piston kit (piston UGTLRUPIW + needle valve support UGET04ST-M10 + N.2 fittings UGTLRUPIRC)
ØC = Standard : 12 - On request: 13
Ød = Standard: 2,0 ÷ 4,0
P = Standard: 25 - On request: 0,5 ÷ 24.9
