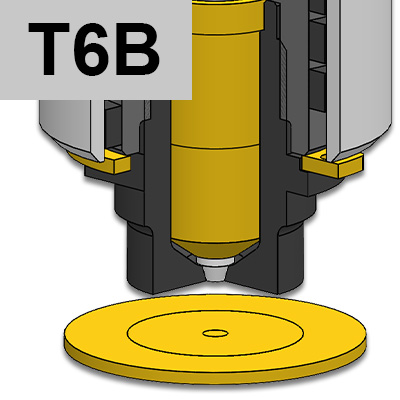

INJECTION VESTIGE: T6B / T6BP
Direct injection nozzles for MULTI CAVITY applications. With needle valve activated by OUTER HYDRAULIC PISTON.
Suitable for:

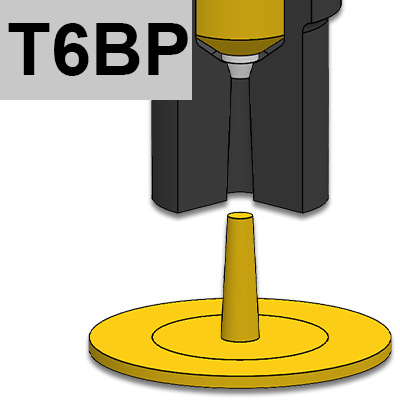

- excellent aesthetic finish of the injection point (T6BP only suitable for injection on sprues)
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Codice | L - C | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 7 | |
|---|---|---|---|---|---|---|---|---|
| UGET6112A 0/1 | L=79 C=54 | UGCR6002M | REPNSP6002 | S151051000J | UGBC65 | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6112AP 0/1 | L=79 C=54 | UGCR6002M | REPNSP6002 | S151051000J | UGBC65P | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6113A 0/1 | L=99 C=74 | UGCR6003M | REPNSP6003 | S151551000J | UGBC65 | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6113AP 0/1 | L=99 C=74 | UGCR6003M | REPNSP6003 | S151551000J | UGBC65P | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6114A 0/1 | L=119 C=94 | UGCR6004M | REPNSP6004 | S151051000J | UGBC65 | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6114AP 0/1 | L=119 C=94 | UGCR6004M | REPNSP6004 | S151051000J | UGBC65P | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6115A 0/1 | L=139 C=114 | UGCR6005M | REPNSP6005 | S151551000J | UGBC65 | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6115AP 0/1 | L=139 C=114 | UGCR6005M | REPNSP6005 | S151551000J | UGBC65P | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6117A 0/1 | L=189 C=164 | UGCR6007M | REPNSP6007 | S152051000J | UGBC65 | UGPU65TZ | UGPU65CU | UGACOR17 |
| UGET6117AP 0/1 | L=189 C=164 | UGCR6007M | REPNSP6007 | S152051000J | UGBC65P | UGPU65TZ | UGPU65CU | UGACOR17 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Opened bushing
3/P = Bushing with machinable prolungation
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET06UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET06TT-DLC Needle valve Ø6
with wear-resistant coating (length to be defined)
11= UGTLRUPIK6 Hydraulic piston kit
(piston UGTLRUPIW + needle valve support UGET06ST-M10 + No.2 fittings UGTLRUPIRC)
ØC = Standard : 16 - On request: 17
Ød = Standard: 3,0 ÷ 5,0
P = Standard: 25 - On request: 0,5 ÷ 24,9
