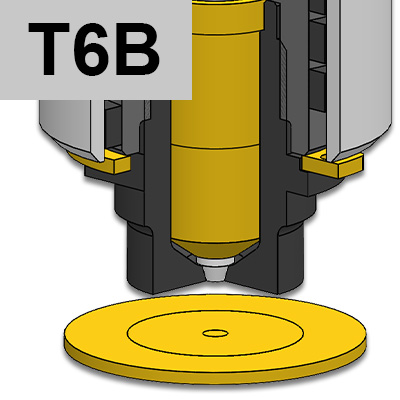

INJECTION VESTIGE: T6B / T6BP
Direct injection nozzles for MULTI CAVITY applications. With needle valve activated by OUTER PNEUMATIC PISTON.
Suitable for:

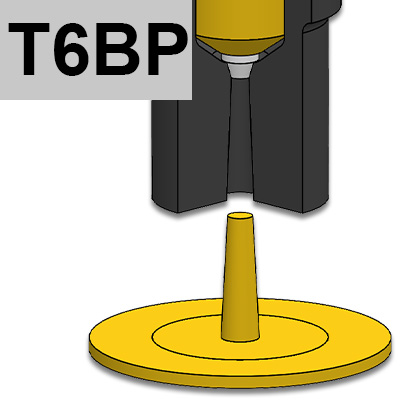

- excellent aesthetic finish of the injection point (TBP6 only suitable for injection on sprues)
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 -/3P | 4/0 - 4/1 | 7 | |
|---|---|---|---|---|---|---|---|---|
| UGET4101A 0/1 | L=74 C=54 | UGCR4001M | REPNSP4001 | S151051000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4101AP 0/1 | L=74 C=54 | UGCR4001M | REPNSP4001 | S151051000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4102A 0/1 | L=104 C=84 | UGCR4002M | REPNSP4002 | S151051000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4102AP 0/1 | L=104 C=84 | UGCR4002M | REPNSP4002 | S151051000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4103A 0/1 | L=134 C=114 | UGCR4003M | REPNSP4003 | S151551000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4103AP 0/1 | L=134 C=114 | UGCR4003M | REPNSP4003 | S151551000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4104A 0/1 | L=184 C=164 | UGCR4004M | REPNSP4004 | S152051000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4104AP 0/1 | L=184 C=164 | UGCR4004M | REPNSP4004 | S152051000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4105A 0/1 | L=234 C=214 | UGCR4005M | REPNSP4005 | S152551000J | UGBC45 | UGPU45TZ | UGPU45CU | UGACOR11 |
| UGET4105AP 0/1 | L=234 C=214 | UGCR4005M | REPNSP4005 | S152551000J | UGBC45P | UGPU45TZ | UGPU45CU | UGACOR11 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Closed bushing
3/P = Bushing with machinable prolungation
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET04UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET04TT-DLC Needle valve Ø4
with wear-resistant coating (length to be defined)
11= UGTL550K Pneumatic piston Kit
(piston UGTL550PP-XB6 + needle valve support UGET04ST-M8 + N.2 fittings UGTL550RC and spacers N.2 UGTL550PD+ N.2 UGTL550SP)
ØC = Standard : 9 - On request: 10
Ød = Standard: 1,0 ÷ 3,0
P = Standard: 25 - On request: 0,5 ÷ 24,9
