INJECTION VESTIGE: T6

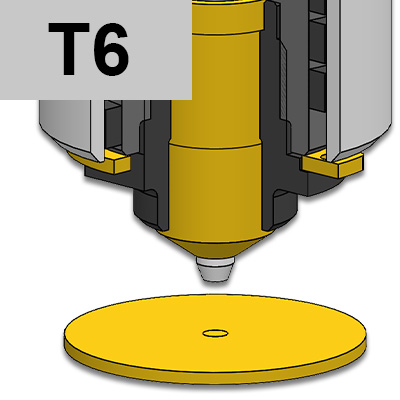

Direct injection nozzles for SINGLE and MULTI CAVITY applications. With needle valve activated by INNER PNEUMATIC PISTON.
Suitable for:
- making gate vestige nearly invisible
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 | 4 - 0/1 | 7 |
|---|---|---|---|---|---|---|---|
| UGET6002A0 | L=79 C=54 | UGCR6002M | REPNSP6002 | S151051000J | UGBC610M | UGPU65TZ | UGACOR17 |
| UGET6002A1 | L=79 C=54 | UGCR6002M | REPNSP6002 | S151051000J | UGBC610M | UGPU65CU | UGACOR17 |
| UGET6003A0 | L=99 C=74 | UGCR6003M | REPNSP6003 | S151551000J | UGBC610M | UGPU65TZ | UGACOR17 |
| UGET6003A1 | L=99 C=74 | UGCR6003M | REPNSP6003 | S151551000J | UGBC610M | UGPU65CU | UGACOR17 |
| UGET6004A0 | L=119 C=94 | UGCR6004M | REPNSP6004 | S151551000J | UGBC610M | UGPU65TZ | UGACOR17 |
| UGET6004A1 | L=119 C=94 | UGCR6004M | REPNSP6004 | S151551000J | UGBC610M | UGPU65CU | UGACOR17 |
| UGET6005A0 | L=139 C=114 | UGCR6005M | REPNSP6005 | S151551000J | UGBC610M | UGPU65TZ | UGACOR17 |
| UGET6005A1 | L=139 C=114 | UGCR6005M | REPNSP6005 | S151551000J | UGBC610M | UGPU65CU | UGACOR17 |
| UGET6007A0 | L=189 C=164 | UGCR6007M | REPNSP6005 | S152051000J | UGBC610M | UGPU65TZ | UGACOR17 |
| UGET6007A1 | L=189 C=164 | UGCR6007M | REPNSP6005 | S152051000J | UGBC610M | UGPU65CU | UGACOR17 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Opened bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET06UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET06TT-DLC Needle valve Ø6
with wear-resistant coating (length to be defined)
11= UGTL730K Pneumatic piston Kit
(piston UGTL730PP-XB6 + needle valve support UGET06ST-M10 + No.2 fittings UGTL720RC and spacers No.2 UGTL5730PD+ No.2 UGTL730SP)

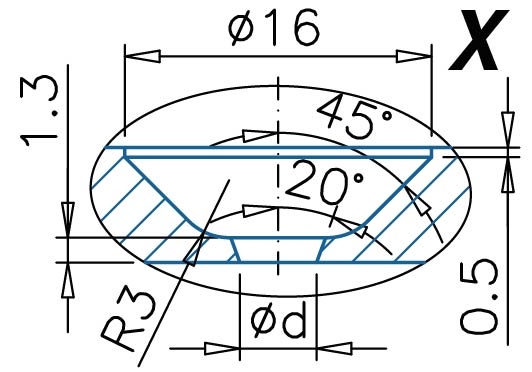

ØC = Standard : 16 - On request: 17
Ød = Standard: 3,0 ÷ 5,0
