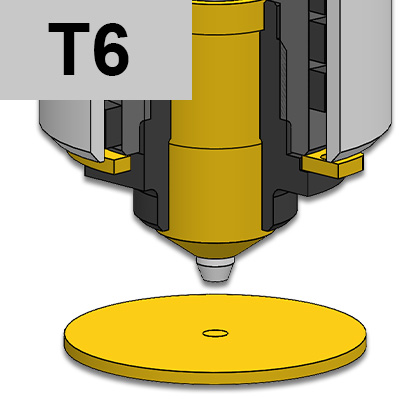

INJECTION VESTIGE: T6
Direct injection nozzles for SINGLE and MULTI CAVITY applications. With needle valve activated by INNER PNEUMATIC PISTON.
Suitable for:
- making gate vestige nearly invisible
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 | 4 - 0/1 | 7 |
|---|---|---|---|---|---|---|---|
| UGET5001A0 | L=74 C=54 | UGCR5001M | REPNSP5001 | S151051000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5001A1 | L=74 C=54 | UGCR5001M | REPNSP5001 | S151051000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5002A0 | L=104 C=84 | UGCR5002M | REPNSP5002 | S151051000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5002A1 | L=104 C=84 | UGCR5002M | REPNSP5002 | S151051000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5003A0 | L=134 C=144 | UGCR5003M | REPNSP5003 | S151551000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5003A1 | L=134 C=144 | UGCR5003M | REPNSP5003 | S151551000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5004A0 | L=184 C=164 | UGCR5004M | REPNSP5004 | S152051000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5004A1 | L=184 C=164 | UGCR5004M | REPNSP5004 | S152051000J | UGBC550 | UGPU55CU | UGACOR14 |
| UGET5005A0 | L=234 C=214 | UGCR5005M | REPNSP5005 | S152551000J | UGBC550 | UGPU55TZ | UGACOR14 |
| UGET5005A1 | L=234 C=214 | UGCR5005M | REPNSP5005 | S152551000J | UGBC550 | UGPU55CU | UGACOR14 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Opened bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET05UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET05TT-DLC Needle valve Ø5
with wear-resistant coating (length to be defined)
11= UGTL720K Pneumatic piston Kit
(piston UGTL720PP-XB6 + needle valve support UGET05ST-M8 + No.2 fittings UGTL720RC and spacers No.2 UGTL550PD+ No.2 UGTL550SP)

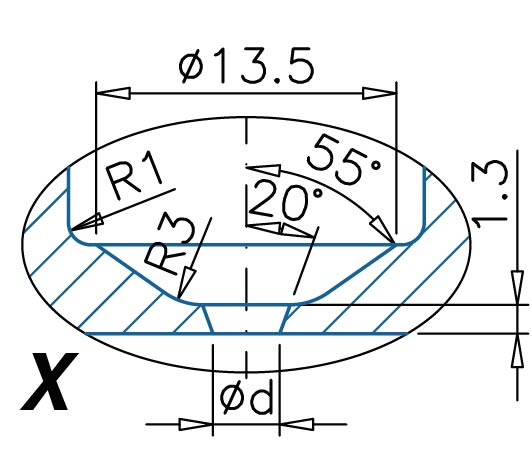

ØC = Standard : 12 - On request: 13
Ød = Standard: 2,0 ÷ 4,0
