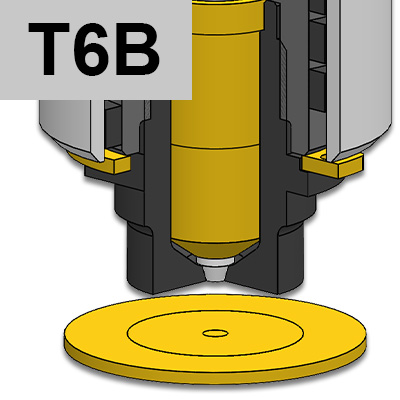

INJECTION VESTIGE: T6B / T6BP
Direct injection nozzles for MULTI CAVITY applications. With needle valve activated by OUTER PNEUMATIC PISTON.
Suitable for:

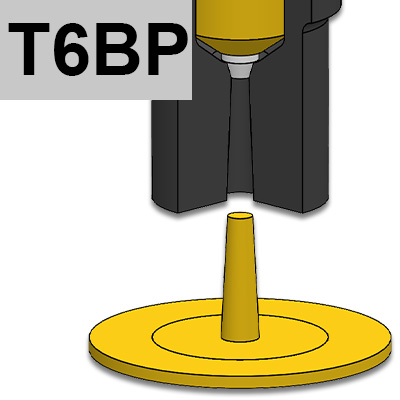

- excellent aesthetic finish of the injection point (T6BP only suitable for injection on sprues)
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 7 | |
|---|---|---|---|---|---|---|---|---|
| UGET5101A 0/1 | L=74 C=54 | UGCR5001M | REPNSP5001 | S151051000J | UGBC55 | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5101AP 0/1 | L=74 C=54 | UGCR5001M | REPNSP5001 | S151051000J | UGBC55P | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5102A 0/1 | L=104 C=84 | UGCR5002M | REPNSP5002 | S151051000J | UGBC55 | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5102AP 0/1 | L=104 C=84 | UGCR5002M | REPNSP5002 | S151051000J | UGBC55P | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5103A 0/1 | L=134 C=114 | UGCR5003M | REPNSP5003 | S151551000J | UGBC55 | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5103AP 0/1 | L=134 C=114 | UGCR5003M | REPNSP5003 | S151551000J | UGBC55P | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5104A 0/1 | L=184 C=164 | UGCR5004M | REPNSP5004 | S152051000J | UGBC55 | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5104AP 0/1 | L=184 C=164 | UGCR5004M | REPNSP5004 | S152051000J | UGBC55P | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5105A 0/1 | L=234 C=214 | UGCR5005M | REPNSP5005 | S152551000J | UGBC55 | UGPU55TZ | UGPU55CU | UGACOR14 |
| UGET5105AP 0/1 | L=234 C=214 | UGCR5005M | REPNSP5005 | S152551000J | UGBC55P | UGPU55TZ | UGPU55CU | UGACOR14 |
1 = Nozzle body
2 = Coil heater
T2= J thermocouple
3 = Closed bushing
3/P = Bushing with machinable prolungation
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
7 = O-RING
9 = UGET05UGU-DLC Needle valve sealing
with wear-resistant coating
10 = UGET05TT-DLC Needle valve Ø5
with wear-resistant coating (length to be defined)
11= UGTL720K Pneumatic piston Kit
(piston UGTL720PP-XB6 + needle valve support UGET05ST-M8 + No.2 fittings UGTL720RC and spacers No.2 UGTL550PD+ No.2 UGTL550SP)
ØC = Standard : 12 - On request: 13
Ød = Standard: 2,0 ÷ 4,0
P = Standard: 25 - On request: 0,5 ÷ 24.9
