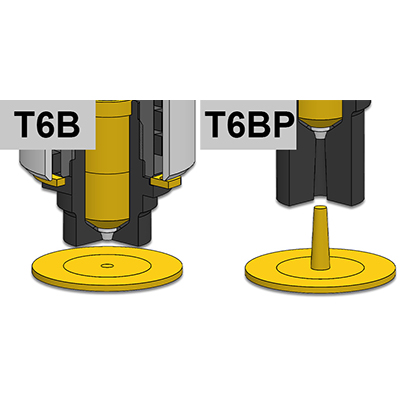

INJECTION VESTIGE: T6 (TP) / T6B (BC)
Direct injection nozzles for SINGLE CAVITY applications with needle valve activated by INNER PNEUMATIC PISTON.
Suitable for:
- making gate vestige nearly invisible
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 | 4/0 | 4/1 | 9 | |
|---|---|---|---|---|---|---|---|---|---|
| UGTL8050BCSA | 0/1 | L=128 C=38 | UGTL8050CF | REPNSP6001 | S101051000J | UGBC66 | UGPU66TZ | UGPU66CU | UGTL8050T |
| UGTL8050TPSA | 0/1 | L=128 C=38 | UGTL8050CF | REPNSP6001 | S101051000J | UGBC660 | UGPU66TZ | UGPU66CU | UGTL8050T |
| UGTL8060BCSA | 0/1 | L=148 C=58 | UGTL8060CF | REPNSP6002 | S101051000J | UGBC66 | UGPU66TZ | UGPU66CU | UGTL8060T |
| UGTL8060TPSA | 0/1 | L=148 C=58 | UGTL8060CF | REPNSP6002 | S101051000J | UGBC660 | UGPU66TZ | UGPU66CU | UGTL8060T |
| UGTL8070BCSA | 0/1 | L=168 C=78 | UGTL8070CF | REPNSP6003 | S101551000J | UGBC66 | UGPU66TZ | UGPU66CU | UGTL8070T |
| UGTL8070TPSA | 0/1 | L=168 C=78 | UGTL8070CF | REPNSP6003 | S101551000J | UGBC660 | UGPU66TZ | UGPU66CU | UGTL8070T |
| UGTL8080BCSA | 0/1 | L=188 C=98 | UGTL8080CF | REPNSP6004 | S101551000J | UGBC66 | UGPU66TZ | UGPU66CU | UGTL8080T |
| UGTL8080TPSA | 0/1 | L=188 C=98 | UGTL8080CF | REPNSP6004 | S101551000J | UGBC660 | UGPU66TZ | UGPU66CU | UGTL8080T |
1= Nozzle body
2 = Coiled heater
T2= Thermocouple J
3 = Closed Bushing UGBC66 (BC=T6B)
3 = Open Bushing UGBC660 (TP=T6)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
8= PI model band heater (REPI70TL)
T8= Thermocouple J (S151551000J)
9= Needle Valve Ø 6
11= Pneumatic Piston (UGTL8000P)
12= Needle Valve body (UGTL80CT)
13 = Needle valve sealing (UGTL8000GU)
14 = O-Ring (N.2 UGACOR11)
15= Connections+air pipes (UGTL81RC)
16= Aluminium block (UGTL8BL)
17= Seeger
18= Needle valve centering on request
(UGTL8000GH)

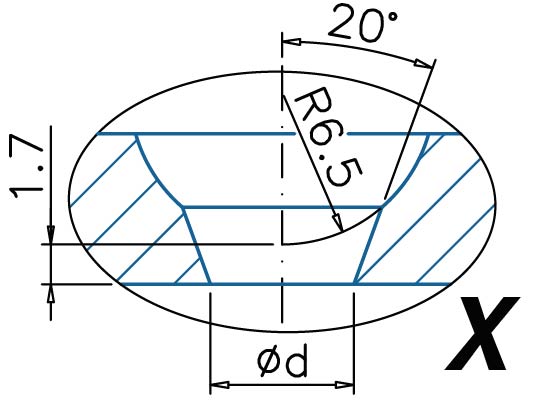

Ød= Standard 4,0 - On request: 2,0÷ 4,5
