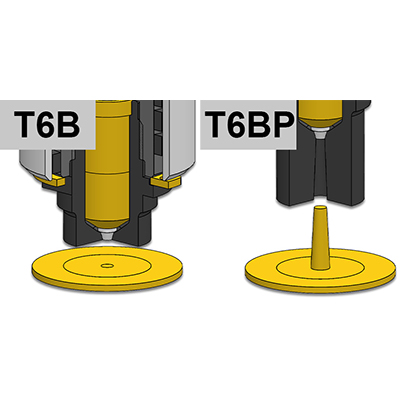

INJECTION VESTIGE: T6 (TP) / T6B (BC)
Direct injection nozzles for SINGLE CAVITY applications with needle valve activated by INNER PNEUMATIC PISTON.
Suitable for:
- making gate vestige nearly invisible
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Code | L - C | 1 | 2 | T(2) | 3 | 4/0 | 4/1 | 9 | |
|---|---|---|---|---|---|---|---|---|---|
| UGTL8130BCSA | 0/1 | L=136 C=38 | UGTL8130CF | REPNSP8101 | S151051000J | UGBC76 | UGPU76TZ | UGPU76CU | UGTL813T |
| UGTL8130TPSA | 0/1 | L=136 C=38 | UGTL8130CF | REPNSP8101 | S151051000J | UGBC760 | UGPU76TZ | UGPU76CU | UGTL813T |
| UGTL8150BCSA | 0/1 | L=156 C=58 | UGTL8150CF | REPNSP8102 | S151051000J | UGBC76 | UGPU76TZ | UGPU76CU | UGTL815T |
| UGTL8150TPSA | 0/1 | L=156 C=58 | UGTL8150CF | REPNSP8102 | S151051000J | UGBC760 | UGPU76TZ | UGPU76CU | UGTL815T |
| UGTL8170BCSA | 0/1 | L=176 C=78 | UGTL8170CF | REPNSP8103 | S151051000J | UGBC76 | UGPU76TZ | UGPU76CU | UGTL817T |
| UGTL8170TPSA | 0/1 | L=176 C=78 | UGTL8170CF | REPNSP8103 | S151051000J | UGBC760 | UGPU76TZ | UGPU76CU | UGTL817T |
| UGTL8190BCSA | 0/1 | L=196 C=98 | UGTL8190CF | REPNSP8104 | S151551000J | UGBC76 | UGPU76TZ | UGPU76CU | UGTL819T |
| UGTL8190TPSA | 0/1 | L=196 C=98 | UGTL8190CF | REPNSP8104 | S151551000J | UGBC760 | UGPU76TZ | UGPU76CU | UGTL819T |
1 = Nozzle body
2 = Coiled heater
T2= Thermocouple J
3 = Closed Bushing UGBC76 (BC=T6B)
3 = Open Bushing UGBC760 (TP=T6)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
8= PI model band heaters (REPI85TL)
T8=Thermocouple J (S151551000J)
9= Needle Valve Ø 10
11= Pneumatic Piston (UGTL8100P)
12= Needle Valve body (UGTL8100CT)
13 = Needle valve sealing (UGTL10UGU-DLC)
14 = O-Ring (N.2 UGACOR14)
15= Connections+air pipes (UGTL81RC)
16= Aluminium block (UGTL8BL)
17= Seeger
18= Needle valve centering on request
(UGTL8100GH)

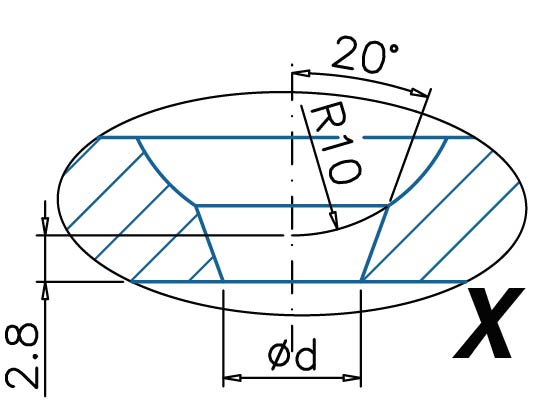

Ød= Standard 6,0 - on request: 4,0÷ 8,0
