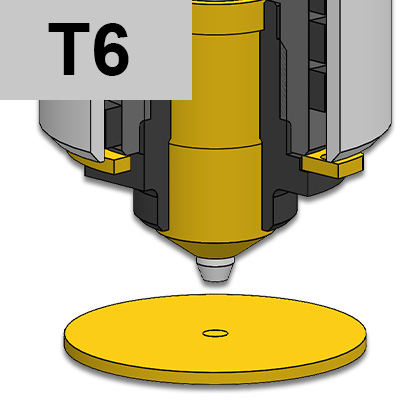

INJECTION VESTIGE: T6
Direct injection nozzles for SINGLE and MULTI CAVITY applications, with needle valve activated by INNER PNEUMATIC PISTON.
Suitable for:
- making gate vestige nearly invisible
- intense colours and colour change
| Code | C - L | 1 | 2 | 6 - 7 | 8 T(8) | 9 | 11 | 12 | |
|---|---|---|---|---|---|---|---|---|---|
| UGTL8001M | C=25 L=90 | UGTL800C | 0502KIT | UGACOR14 | REPI55TL | S151551000J | UGTL800T | UGTL80P | UGTL80CTM |
| UGTL8001S | C=25 L=94 | UGTL800C | 0502KIT | UGTL80TT | REPI55TL | S151551000J | UGTL800T | UGTL80P | UGTL80CTS |
1 = Nozzle body
2 = Cartridge heaters kit
n.2 without TC (0630026A0075X)
n.1 with TC (0630026B0080X)
6 = Centering Ring
7 = O-Ring
8 = PI model band heater
T8 = Thermocouple J
9 = Needle Valve Ø 4
11 = Pneumatic Piston
12 = Needle Valve body
(M=MultiCavity / S=Single Cavity)
13 = Needle valve sealing
(UGTL04UGU-DLC + UGTL04BMT)
14 = O-Ring (N.1 UGACOR08)
15 = Connections+air pipes (UGTL8RC)
16 = Aluminium block (UGTL8BL)

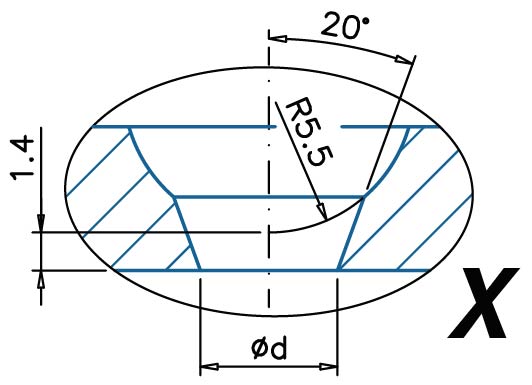

Ød = Standard 3,0 - on request: 1,5÷2,9
