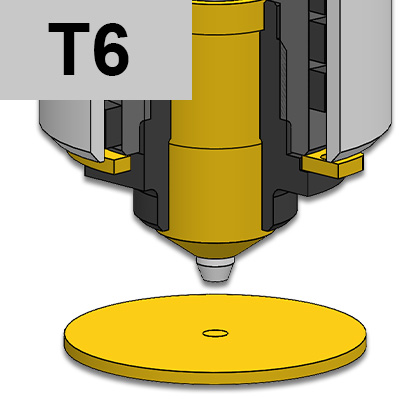

INJECTION VESTIGE: T6
Direct injection nozzles for SINGLE and MULTI CAVITY applications with needle valve activated by INNER PNEUMATIC PISTON.
Suitable for:
- making gate vestige nearly invisible
- intense colours and colour change
- abrasive reinforcements (choose the 4/0 tip)
| Codice | L - C | 1 | 2 | T(2) | 3 | 4/0 | 4/1 | 6 - 7 | 9 | |
|---|---|---|---|---|---|---|---|---|---|---|
| UGTL8010TPMA 0/1 | L=104 C=39 | UGTL801CF | REPNSPDL31 | S101051000J | UGBC560 | UGPU56TZ | UGPU56CU | UGACOR14 | UGTL801T | |
| UGTL8010TPSA 0/1 | L=108 C=39 | UGTL801CF | REPNSPDL31 | S101051000J | UGBC560 | UGPU56TZ | UGPU56CU | UGTL80TT | UGTL801T | |
| UGTL8020TPMA 0/1 | L=124 C=59 | UGTL802CF | REPNSPDL32 | S101051000J | UGBC560 | UGPU56TZ | UGPU56CU | UGACOR14 | UGTL802T | |
| UGTL8020TPMA 0/1 | L=128 C=59 | UGTL802CF | REPNSPDL32 | S101051000J | UGBC560 | UGPU56TZ | UGPU56CU | UGTL80TT | UGTL802T | |
| UGTL8030TPMA 0/1 | L=144 C=79 | UGTL803CF | REPNSPDL33 | S101051000J | UGBC560 | UGPU56TZ | UGPU56CU | UGACOR14 | UGTL803T | |
| UGTL8030TPSA 0/1 | L=148 C=79 | UGTL803CF | REPNSPDL33 | S101051000J | UGBC560 | UGPU56TZ | UGPU56CU | UGTL80TT | UGTL803T | |
| UGTL8040TPMA 0/1 | L=164 C=99 | UGTL804CF | REPNSPDL34 | S101551000J | UGBC560 | UGPU56TZ | UGPU56CU | UGACOR14 | UGTL804T | |
| UGTL8040TPSA 0/1 | L=168 C=99 | UGTL804CF | REPNSPDL34 | S101551000J | UGBC560 | UGPU56TZ | UGPU56CU | UGTL80TT | UGTL804T | |
1 = Nozzle body
2 = Coiled heater
T= Thermocouple J
3 = Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering Ring
7 = O-Ring
8 = PI model band heater (REPI55TL)
T8 = Thermocouple J (S151551000J)
9 = Needle Valve Ø 4
11= Pneumatic Piston (UGTL80P)
12 = Needle Valve body
(UGTL80CT M=MultiCavity /S=Single Cavity)
13 = Needle valve sealing (UGTL04GF)
14 = O-Ring (N.2 UGACOR08)
15 = Connections+air pipes (UGTL8RC)
16= Aluminium block (UGTL8BL)
17= Seeger

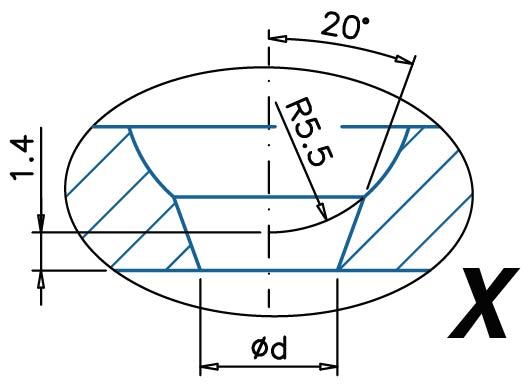

Ød= Standard 3,0 - on request: 1,5÷2,9
