INJECTION VESTIGE: T3
NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- NO: plastics that leave stringings / droolings while mould opens
- NO: SINGLE CAVITY applications, for plastics with melting temperature higher than 250°C
| Code | C - L | 1 | 2 | T(2) | 4/0 | 4/1 | 5 | 6 | |
|---|---|---|---|---|---|---|---|---|---|
| UGER2001MA | 0/1 | C=41 L=61 | UGCR2001M | RERNSP2001 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2001SA | 0/1 | C=41 L=63 | UGCR2001S | RERNSP2001 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
| UGER2002MA | 0/1 | C=56 L=76 | UGCR2002M | RERNSP2002 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2002SA | 0/1 | C=56 L=78 | UGCR2002S | RERNSP2002 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
| UGER2003MA | 0/1 | C=76 L=96 | UGCR2003M | RERNSP2003 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2003SA | 0/1 | C=76 L=98 | UGCR2003S | RERNSP2003 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
| UGER2004MA | 0/1 | C=96 L=116 | UGCR2004M | RERNSP2004 | S101551000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2004SA | 0/1 | C=96 L=118 | UGCR2004S | RERNSP2004 | S101551000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
5 = Titanium ring
6 = Centering ring

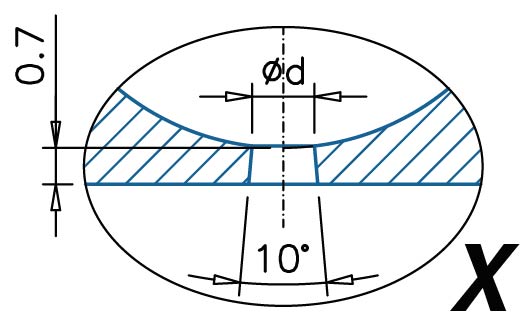

ØC = Standard: 4 - On request: 5
Ød = Standard: 0,6÷2,0
O-RING on request
