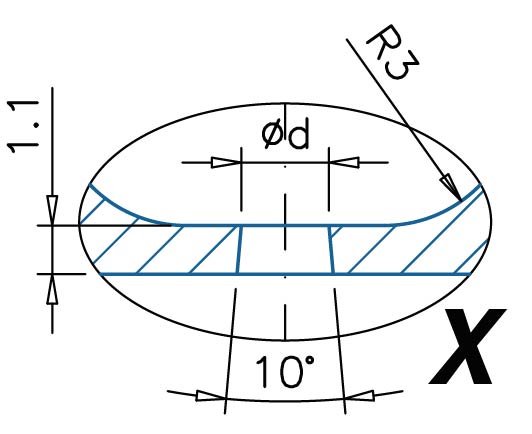

INJECTION VESTIGE: T3
NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- NO: plastics that leave stringings / droolings while mould opens
- NO: SINGLE CAVITY applications, for plastics with melting temperature higher than 250°C
| Code | C - L | 1 | 2 | T(2) | 3 | 4/0 - 4/1 | 6 | 7 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UGER4001MA | 0/1 | C=54 L=74 | UGCR4001M | REPNSP4001 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4001SA | 0/1 | C=54 L=76 | UGCR4001S | REPNSP4001 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4002MA | 0/1 | C=84 L=104 | UGCR4002M | REPNSP4002 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4002SA | 0/1 | C=84 L=106 | UGCR4002S | REPNSP4002 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4003MA | 0/1 | C=114 L=134 | UGCR4003M | REPNSP4003 | S151551000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4003SA | 0/1 | C=114 L=136 | UGCR4003S | REPNSP4003 | S151551000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4004MA | 0/1 | C=164 L=184 | UGCR4004M | REPNSP4004 | S152051000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4004SA | 0/1 | C=164 L=186 | UGCR4004S | REPNSP4004 | S152051000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4005MA | 0/1 | C=214 L=234 | UGCR4005M | REPNSP4005 | S152551000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4005SA | 0/1 | C=214 L=236 | UGCR4005S | REPNSP4005 | S152551000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3= Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
ØC = Standard: 9 - On request: 10
Ød = standard: 1,0÷3,3
