INJECTION VESTIGE: T3B / T3BP

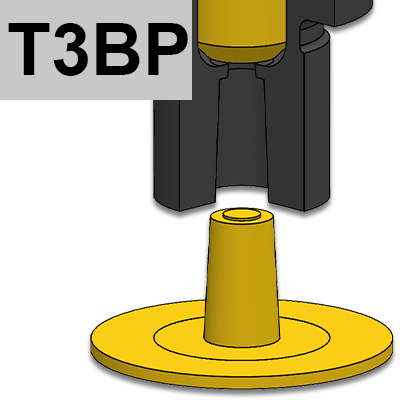

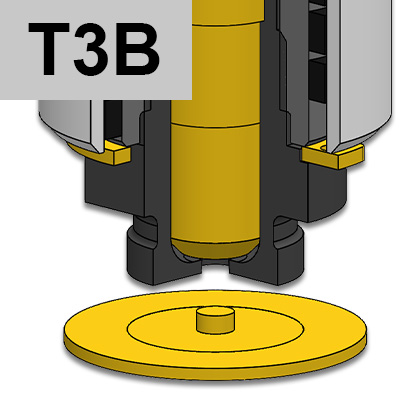

NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON SPRUES (T3BP).
YES - frequent color change
YES - intense colours
YES - abrasive reinforcements (choose the 4/0 tip)
NO - plastics that leave stringings / droolings while mould opens
NO - SINGLE CAVITY applications, for thermoplastic materials with melting temperature higher than 250°C
| Code | C - L | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 6 | 7 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UGER6102MA | -/P 0/1 | C=54 L=79 | UGCR6002M | REPNSP6002 | S151051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6102SA | -/P 0/1 | C=54 L=81 | UGCR6002S | REPNSP6002 | S151051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6103MA | -/P 0/1 | C=74 L=99 | UGCR6003M | REPNSP6003 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6103SA | -/P 0/1 | C=74 L=101 | UGCR6003S | REPNSP6003 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6104MA | -/P 0/1 | C=94 L=119 | UGCR6004M | REPNSP6004 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6104SA | -/P 0/1 | C=94 L=121 | UGCR6004S | REPNSP6004 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6105MA | -/P 0/1 | C=114 L=139 | UGCR6005M | REPNSP6005 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6105SA | -/P 0/1 | C=114 L=141 | UGCR6005S | REPNSP6005 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6107MA | -/P 0/1 | C=164 L=189 | UGCR6007M | REPNSP6007 | S152051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6107SA | -/P 0/1 | C=164 L=191 | UGCR6007S | REPNSP6007 | S152051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3 = Closed bushing
(Ød = standard: 1,0-1,2-1,5-2,0-2,5-3,0-3,5-4,0)
3/P = Bushing with machinable prolungation
(Ød = standard: 1,2-1,5-2,0-2,5-3,0-3,5-4,0)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
ØC = Standard : 16 - On request: 17
P = standard: 25 - On request: 0,5 ÷ 24.9
