ER model nozzles series 5100

ER model nozzles series 5100

S Single Cavity Application
 ER model nozzles series 5100
M MultiCavity Application

Description

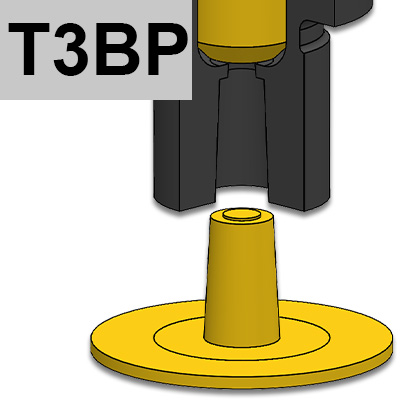

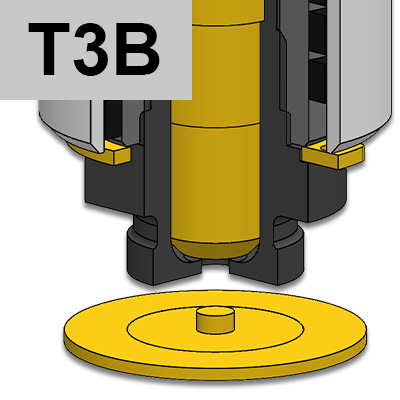

INJECTION VESTIGE: T3B / T3BP

NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON  SPRUES (T3BP).

- YES: frequent color change

- YES: intense colours

- YES: abrasive reinforcements (choose the 4/0 tip)

- NO: plastics that leave stringings / droolings while mould opens

- NO: SINGLE CAVITY applications, for thermoplastic materials with melting temperature higher than 250°C


Click here to see photos of injection witnesses
CodeC - L12T(2)3 - 3/P4/0 - 4/167
UGER5101MA -/P 0/1 C=54 L=74 UGCR5001M REPNSP5001 S151051000J UGBC53 UGBC53P UGPU53TZ UGPU53CU - UGACOR14
UGER5101SA -/P 0/1 C=54 L=76 UGCR5001S REPNSP5001 S151051000J UGBC53 UGBC53P UGPU53TZ UGPU53CU UGAS4937 -
UGER5102MA -/P 0/1 C=84 L=104 UGCR5002M REPNSP5002 S151051000J UGBC53 UGBC53P UGPU53TZ UGPU53CU - UGACOR14
UGER5102SA -/P 0/1 C=84 L=106 UGCR5002S REPNSP5002 S151051000J UGBC53 UGBC53P UGPU53TZ UGPU53CU UGAS4937 -
UGER5103MA -/P 0/1 C=114 L=134 UGCR5003M REPNSP5003 S151551000J UGBC53 UGBC53P UGPU53TZ UGPU53CU - UGACOR14
UGER5103SA -/P 0/1 C=114 L=136 UGCR5003S REPNSP5003 S151551000J UGBC53 UGBC53P UGPU53TZ UGPU53CU UGAS4937 -
UGER5104MA -/P 0/1 C=164 L=184 UGCR5004M REPNSP5004 S152051000J UGBC53 UGBC53P UGPU53TZ UGPU53CU - UGACOR14
UGER5104SA -/P 0/1 C=164 L=186 UGCR5004S REPNSP5004 S152051000J UGBC53 UGBC53P UGPU53TZ UGPU53CU UGAS4937 -
UGER5105MA -/P 0/1 C=214 L=234 UGCR5005M REPNSP5005 S152551000J UGBC53 UGBC53P UGPU53TZ UGPU53CU - UGACOR14
UGER5105SA -/P 0/1 C=214 L=236 UGCR5005S REPNSP5005 S152551000J UGBC53 UGBC53P UGPU53TZ UGPU53CU UGAS4937 -

Legend:

1 = Nozzle body

(M=MultiCavity / S=Single Cavity)

2 = Coil heater

T(2) = J thermocouple

3 = Closed bushing

(Ød = standard: 1,0-1,2-1,5-2,0-2,5-3,0-3,5)

3/P = Bushing with machinable prolungation

(Ød = standard: 1,2-1,5-2,0-2,5-3,0-3,5)

4/0 =  Abrasive charges tip

4/1 = Cu-Be tip

6 = Centering ring

7 = O-RING

ØC = Standard : 12 - On request: 13

P = standard: 25 - On request: 0,5 ÷ 24.9

Photo:

PDF file

Do you want to download the PDF file of this article? Click on the button and the download will start immediately

Download Sheet

Drawing 2D

Do you want to download the 2D drawing of this article? Click on the button and the download will start immediately

Download

Drawing 3D

Do you want to download the 3D drawing of this article? Click on the button and the download will start immediately

Download
