ER model nozzles series 4100

ER model nozzles series 4100

S Single Cavity Application
ER model nozzles series 4100
M MultiCavity Application

Description

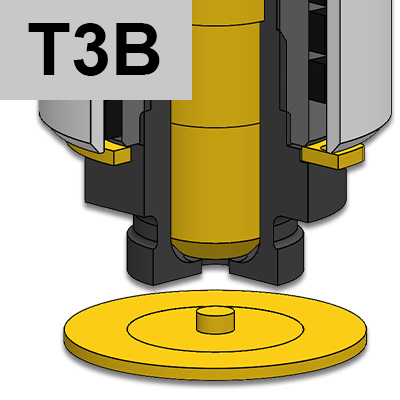

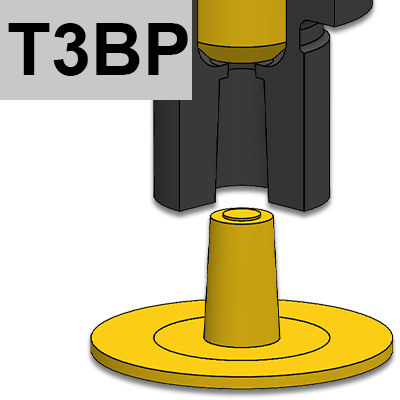

INJECTION VESTIGE: T3B / T3BP

NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON  SPRUES (T3BP).

- YES: frequent color change

- YES: intense colours

- YES: abrasive reinforcements (choose the 4/0 tip)

- NO: plastics that leave stringings / droolings while mould opens

- NO: SINGLE CAVITY applications, for thermoplastic materials with melting temperature higher than 250°C


Click here to see photos of injection witnesses
CodeC - L12T(2)3 - 3/P4/0 - 4/167
UGER4101MA -/P 0/1 C=54 L=74 UGCR4001M REPNSP4001 S151051000J UGBC43 UGBC43P UGPU43TZ UGPU43CU - UGACOR11
UGER4101SA -/P 0/1 C=54 L=76 UGCR4001S REPNSP4001 S151051000J UGBC43 UGBC43P UGPU43TZ UGPU43CU UGAS3530 -
UGER4102MA -/P 0/1 C=84 L=104 UGCR4002M REPNSP4002 S151051000J UGBC43 UGBC43P UGPU43TZ UGPU43CU - UGACOR11
UGER4102SA -/P 0/1 C=84 L=106 UGCR4002S REPNSP4002 S151051000J UGBC43 UGBC43P UGPU43TZ UGPU43CU UGAS3530 -
UGER4103MA -/P 0/1 C=114 L=134 UGCR4003M REPNSP4003 S151551000J UGBC43 UGBC43P UGPU43TZ UGPU43CU - UGACOR11
UGER4103SA -/P 0/1 C=114 L=136 UGCR4003S REPNSP4003 S151551000J UGBC43 UGBC43P UGPU43TZ UGPU43CU UGAS3530 -
UGER4104MA -/P 0/1 C=164 L=184 UGCR4004M REPNSP4004 S152051000J UGBC43 UGBC43P UGPU43TZ UGPU43CU - UGACOR11
UGER4104SA -/P 0/1 C=164 L=186 UGCR4004S REPNSP4004 S152051000J UGBC43 UGBC43P UGPU43TZ UGPU43CU UGAS3530 -
UGER4105MA -/P 0/1 C=214 L=234 UGCR4005M REPNSP4005 S152551000J UGBC43 UGBC43P UGPU43TZ UGPU43CU - UGACOR11
UGER4105SA -/P 0/1 C=214 L=236 UGCR4005S REPNSP4005 S152551000J UGBC43 UGBC43P UGPU43TZ UGPU43CU UGAS3530 -

Legend:

1 = Nozzle body

(M=MultiCavity / S=Single Cavity)

2= Coil heater

T(2) = J thermocouple

3 = Closed bushing

(Ød = standard: 1,0-1,2-1,5-2,0-2,5-3,0)

3/P = Bushing with machinable prolungation

(Ød = standard: 1,2-1,5-2,0-2,5-3,0)

4/0 =  Abrasive charges tip

4/1 = Cu-Be tip

6 = Centering ring

7 = O-RING

ØC = Standard : 9 - On request: 10

P = standard: 25 - On request: 0,5 ÷ 24.9

Photo:

PDF file

Do you want to download the PDF file of this article? Click on the button and the download will start immediately

Download Sheet

Drawing 2D

Do you want to download the 2D drawing of this article? Click on the button and the download will start immediately

Download

Drawing 3D

Do you want to download the 3D drawing of this article? Click on the button and the download will start immediately

Download
