INJECTION VESTIGE: T3
NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- NO: plastics that leave stringings / droolings while mould opens
- NO: SINGLE CAVITY applications, for plastics with melting temperature higher than 250°C
| Code | C - L | 1 | 2 | T(2) | 3 | 4/0 - 4/1 | 6 | 7 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UGER6002MA | 0/1 | C=54 L=79 | UGCR6002M | REPNSP6002 | S151051000J | UGBC610 | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6002SA | 0/1 | C=54 L=81 | UGCR6002S | REPNSP6002 | S151051000J | UGBC610 | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6003MA | 0/1 | C=74 L=99 | UGCR6003M | REPNSP6003 | S151551000J | UGBC610 | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6003SA | 0/1 | C=74 L=101 | UGCR6003S | REPNSP6003 | S151551000J | UGBC610 | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6004MA | 0/1 | C=94 L=119 | UGCR6004M | REPNSP6004 | S151551000J | UGBC610 | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6004SA | 0/1 | C=94 L=121 | UGCR6004S | REPNSP6004 | S151551000J | UGBC610 | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6005MA | 0/1 | C=114 L=139 | UGCR6005M | REPNSP6005 | S151551000J | UGBC610 | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6005SA | 0/1 | C=114 L=141 | UGCR6005S | REPNSP6005 | S151551000J | UGBC610 | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6007MA | 0/1 | C=164 L=189 | UGCR6007M | REPNSP6007 | S152051000J | UGBC610 | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6007SA | 0/1 | C=164 L=191 | UGCR6007S | REPNSP6007 | S152051000J | UGBC610 | UGPU63TZ | UGPU63CU | UGAS5848 | - |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3= Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING

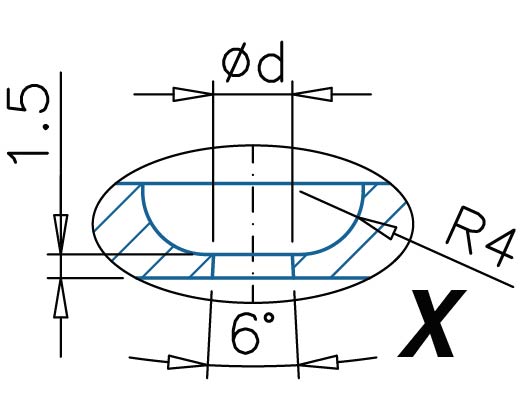

ØC = Standard: 9 - On request: 10
Ød = standard: 1,0÷3,3
