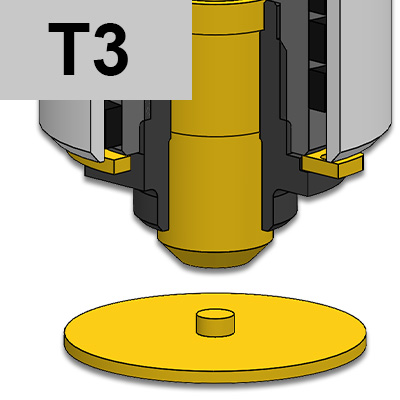

INJECTION VESTIGE: T3
NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- NO: plastics that leave stringings / droolings while mould opens
- NO: SINGLE CAVITY applications, for plastics with melting temperature higher than 250°C
| Code | C - L | 1 | 2 | T(2) | 4/0 | 4/1 | 5 | 6 | |
|---|---|---|---|---|---|---|---|---|---|
| UGER3001MA | 0/1 | C=59 L=77 | UGCR3001M | REPNSP3001 | S151051000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3001SA | 0/1 | C=59 L=79 | UGCR3001S | REPNSP3001 | S151051000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
| UGER3002MA | 0/1 | C=89 L=107 | UGCR3002M | REPNSP3002 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3002SA | 0/1 | C=89 L=109 | UGCR3002S | REPNSP3002 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
| UGER3003MA | 0/1 | C=119 L=137 | UGCR3003M | REPNSP3003 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3003SA | 0/1 | C=119 L=139 | UGCR3003S | REPNSP3003 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
| UGER3004MA | 0/1 | C=159 L=177 | UGCR3004M | REPNSP3004 | S152051000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3004SA | 0/1 | C=159 L=179 | UGCR3004S | REPNSP3004 | S152051000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |

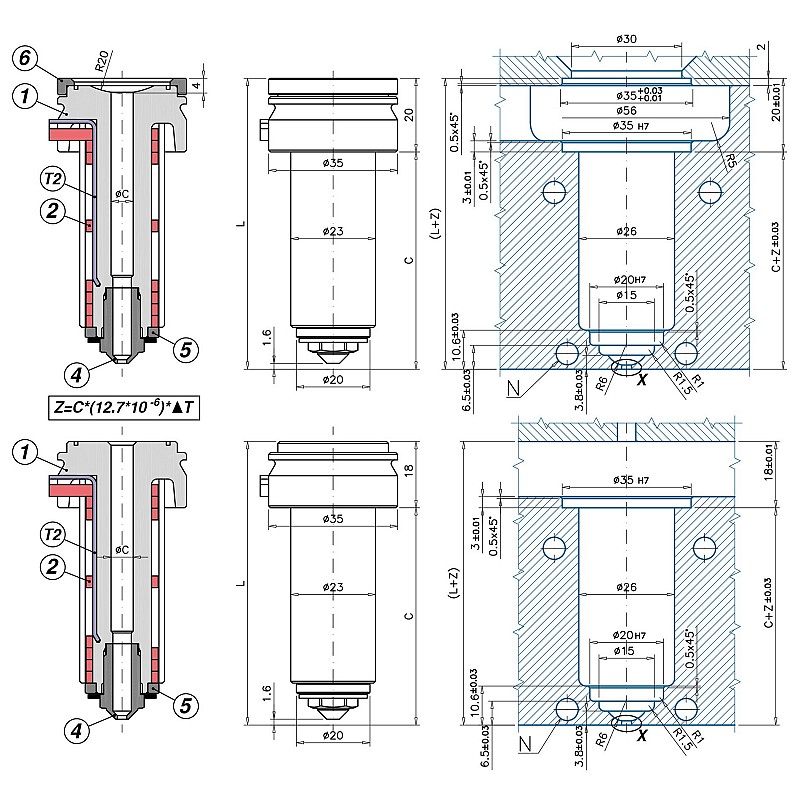

1 = Corpo ugello
(M=Impronta Multipla / S=Impronta Singola)
2= Resistenza spiralata
T(2) = J thermocouple
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
5 = Titanium ring
6 = Centering ring
ØC = Standard : 6 - On request: 7

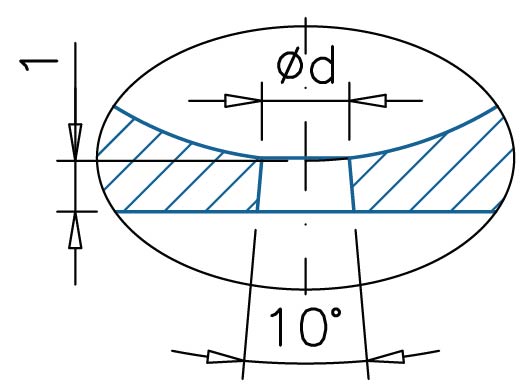

Ød = standard: 0,6÷2,5
O-RING on request
