INJECTION VESTIGE: T3
NOZZLES FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- NO: plastics that leave stringings / droolings while mould opens
- NO: SINGLE CAVITY applications, for plastics with melting temperature higher than 250°C
| Code | C - L | 1 | 2 | T(2) | 3 | 4/0 - 4/1 | 6 | 7 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UGER5001MA | 0/1 | C=54 L=74 | UGCR5001M | REPNSP5001 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5001SA | 0/1 | C=54 L=76 | UGCR5001S | REPNSP5001 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5002MA | 0/1 | C=84 L=104 | UGCR5002M | REPNSP5002 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5002SA | 0/1 | C=84 L=106 | UGCR5002S | REPNSP5002 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5003MA | 0/1 | C=114 L=134 | UGCR5003M | REPNSP5003 | S151551000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5003SA | 0/1 | C=114 L=136 | UGCR5003S | REPNSP5003 | S151551000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5004MA | 0/1 | C=164 L=184 | UGCR5004M | REPNSP5004 | S152051000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5004SA | 0/1 | C=164 L=186 | UGCR5004S | REPNSP5004 | S152051000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5005MA | 0/1 | C=214 L=234 | UGCR5005M | REPNSP5005 | S152551000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5005SA | 0/1 | C=214 L=236 | UGCR5005S | REPNSP5005 | S152551000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3= Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
ØC = Standard: 9 - On request: 10

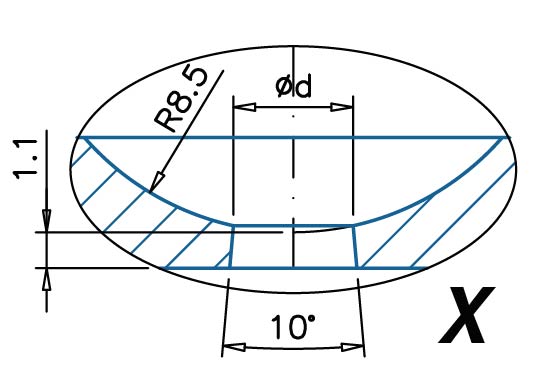

Ød = standard: 1,0÷3,3
