INJECTION VESTIGE: T3
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 4/0 | 4/1 | 5 | 6 | |
|---|---|---|---|---|---|---|---|---|---|
| UGER2501MA | 0/1 | C=45 L=75 | UGCR2501M | REPNSP2001 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2501SA | 0/1 | C=45 L=77 | UGCR2501S | REPNSP2001 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
| UGER2502MA | 0/1 | C=60 L=90 | UGCR2502M | REPNSP2002 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2502SA | 0/1 | C=60 L=92 | UGCR2502S | REPNSP2002 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
| UGER2503MA | 0/1 | C=80 L=110 | UGCR2503M | REPNSP2003 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2503SA | 0/1 | C=80 L=112 | UGCR2503S | REPNSP2003 | S101051000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
| UGER2504MA | 0/1 | C=100 L=130 | UGCR2504M | REPNSP2004 | S101551000J | UGPU22TZ | UGPU22CU | UGER200AT | - |
| UGER2504SA | 0/1 | C=100 L=132 | UGCR2504S | REPNSP2004 | S101551000J | UGPU22TZ | UGPU22CU | UGER200AT | UGAS2623 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
5 = Titanium ring
6 = Centering ring
8 = Head nozzle coil heater (REPNS250)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard: 4 - On request: 5

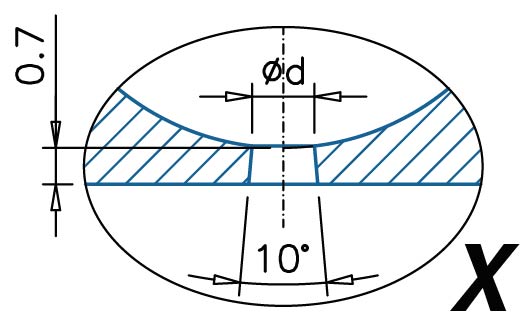

Ød = Standard: 0,6÷2,0
O-RING on request
