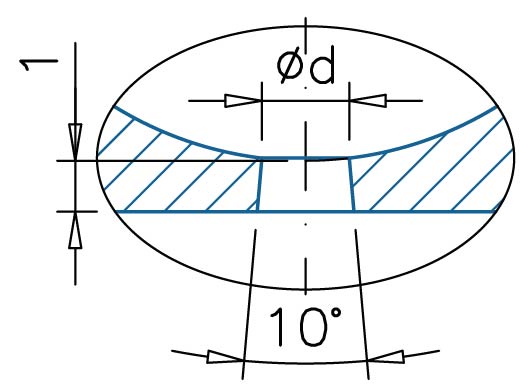

INJECTION VESTIGE: T3
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 4/0 - 4/1 | 5 | 6 | ||
|---|---|---|---|---|---|---|---|---|---|
| UGER3501MA | 0/1 | C=59 L=89 | UGCR3501M | REPNSP3001 | S151051000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3501SA | 0/1 | C=59 L=91 | UGCR3501S | REPNSP3001 | S151051000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
| UGER3502MA | 0/1 | C=89 L=119 | UGCR3502M | REPNSP3002 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3502SA | 0/1 | C=89 L=121 | UGCR3502S | REPNSP3002 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
| UGER3503MA | 0/1 | C=119 L=149 | UGCR3503M | REPNSP3003 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3503SA | 0/1 | C=119 L=151 | UGCR3503S | REPNSP3003 | S151551000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
| UGER3504MA | 0/1 | C=159 L=189 | UGCR3504M | REPNSP3004 | S152051000J | UGPU32TZ | UGPU32CU | UGER300AT | - |
| UGER3504SA | 0/1 | C=159 L=191 | UGCR3504S | REPNSP3004 | S152051000J | UGPU32TZ | UGPU32CU | UGER300AT | UGAS3530 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
5 = Titanium ring
6 = Centering ring
8 = Head nozzle coil heater (REPNS350)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard: 6 - A richiesta: 7
Ød = standard: 0,6÷2,0
O-RING on request
