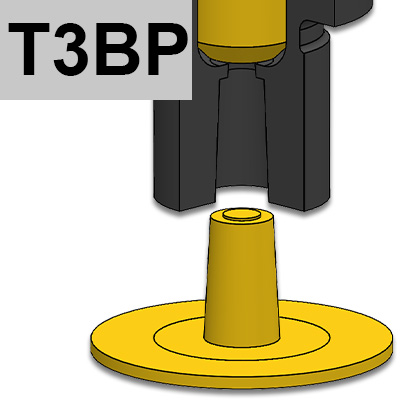

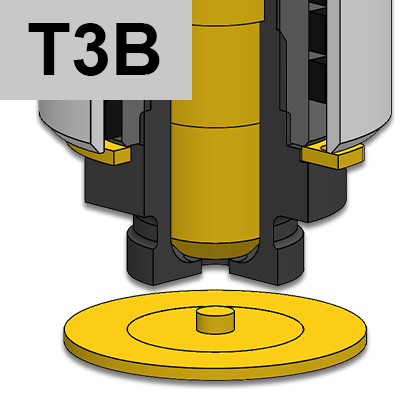

INJECTION VESTIGE: T3B / T3BP
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON SPRUES (T3BP).
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 6 | 7 | 8 | T(8) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UGER4601MA | -/P 0/1 | C=54 L=89 | UGCR4501M | REPNSP4001 | S151051000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | - | UGACOR11 | REPNS450 | S151051000J |
| UGER4601SA | -/P 0/1 | C=54 L=91 | UGCR4501S | REPNSP4001 | S151051000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | UGAS3530 | - | REPNS450 | S151051000J |
| UGER4602MA | -/P 0/1 | C=84 L=119 | UGCR4502M | REPNSP4002 | S151051000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | - | UGACOR11 | REPNS450 | S151051000J |
| UGER4602SA | -/P 0/1 | C=84 L=121 | UGCR4502S | REPNSP4002 | S151051000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | UGAS3530 | - | REPNS450 | S151051000J |
| UGER4603MA | -/P 0/1 | C=114 L=149 | UGCR4503M | REPNSP4003 | S151551000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | - | UGACOR11 | REPNS450 | S151051000J |
| UGER4603SA | -/P 0/1 | C=114 L=151 | UGCR4503S | REPNSP4003 | S151551000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | UGAS3530 | - | REPNS450 | S151051000J |
| UGER4604MA | -/P 0/1 | C=164 L=199 | UGCR4504M | REPNSP4004 | S152051000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | - | UGACOR11 | REPNS450 | S151051000J |
| UGER4604SA | -/P 0/1 | C=164 L=201 | UGCR4504S | REPNSP4004 | S152051000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | UGAS3530 | - | REPNS450 | S151051000J |
| UGER4605MA | -/P 0/1 | C=214 L=249 | UGCR4505M | REPNSP4005 | S152551000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | - | UGACOR11 | REPNS450 | S151051000J |
| UGER4605SA | -/P 0/1 | C=214 L=251 | UGCR4505S | REPNSP4005 | S152551000J | UGBC43 | UGBC43P | UGPU43TZ | UGPU43CU | UGAS3530 | - | REPNS450 | S151051000J |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3 = Closed bushing
(Ød = Standard: 1,0-1,2-1,5-2,0-2,5-3,0)
3/P = Bushing with machinable prolungation
(Ød = Standard: 1,2-1,5-2,0-2,5-3,0)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
8 = Head nozzle coil heater (REPNS450)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard : 9 - On request: 10
P = Standard: 25 - On request: 0,5 ÷ 24.9
