INJECTION VESTIGE: T3
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 | 4/0 - 4/1 | 5 | 6 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UGER3551MA | 0/1 | C=59 L=89 | UGCR3501M | REPNSP3001 | S151051000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3551SA | 0/1 | C=59 L=91 | UGCR3501S | REPNSP3001 | S151051000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
| UGER3552MA | 0/1 | C=89 L=119 | UGCR3502M | REPNSP3002 | S151551000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3552SA | 0/1 | C=89 L=121 | UGCR3502S | REPNSP3002 | S151551000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
| UGER3553MA | 0/1 | C=119 L=149 | UGCR3503M | REPNSP3003 | S151551000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3553SA | 0/1 | C=119 L=151 | UGCR3503S | REPNSP3003 | S151551000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
| UGER3554MA | 0/1 | C=159 L=189 | UGCR3504M | REPNSP3004 | S152051000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3554SA | 0/1 | C=159 L=191 | UGCR3504S | REPNSP3004 | S152051000J | UGBC310 | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3= Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
5 = Copper ring
6 = Centering ring
8 = Head nozzle coil heater (REPNS350)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard : 6 - On request: 7

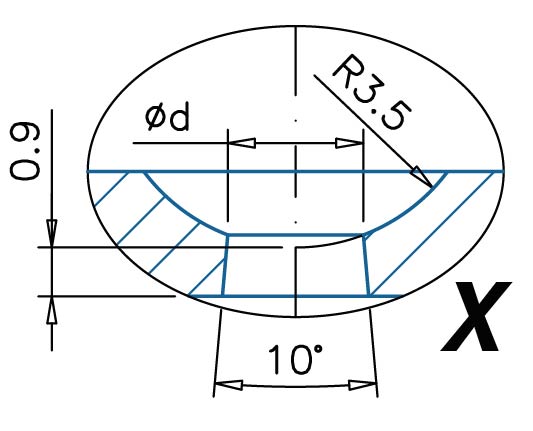

Ød = Standard: 0,6÷2,0
O-RING on request
