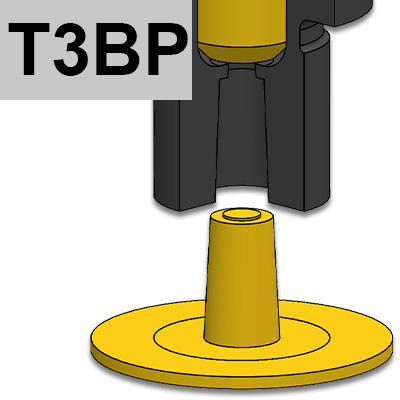

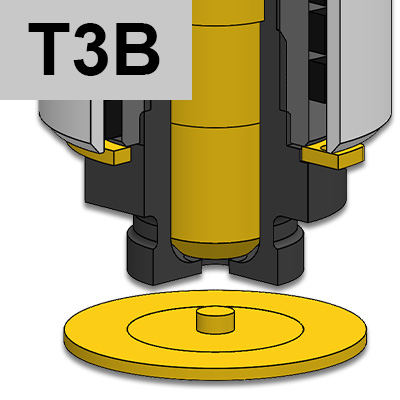

INJECTION VESTIGE: T3B / T3BP
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON SPRUES (T3BP).
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 6 | 7 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UGER6601MA | -/P 0/1 | C=34 L=79 | UGCR6501M | REPNSP6001 | S151051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6601SA | -/P 0/1 | C=34 L=81 | UGCR6501S | REPNSP6001 | S151051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6602MA | -/P 0/1 | C=54 L=99 | UGCR6502M | REPNSP6002 | S151051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6602SA | -/P 0/1 | C=54 L=101 | UGCR6502S | REPNSP6002 | S151051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6603MA | -/P 0/1 | C=74 L=119 | UGCR6503M | REPNSP6003 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6603SA | -/P 0/1 | C=74 L=121 | UGCR6503S | REPNSP6003 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6604MA | -/P 0/1 | C=94 L=139 | UGCR6504M | REPNSP6004 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6604SA | -/P 0/1 | C=94 L=141 | UGCR6504S | REPNSP6004 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6605MA | -/P 0/1 | C=114 L=159 | UGCR6505M | REPNSP6005 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6605SA | -/P 0/1 | C=114 L=161 | UGCR6505S | REPNSP6005 | S151551000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
| UGER6607MA | -/P 0/1 | C=164 L=209 | UGCR6507M | REPNSP6007 | S152051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | - | UGACOR17 |
| UGER6607SA | -/P 0/1 | C=164 L=211 | UGCR6507S | REPNSP6007 | S152051000J | UGBC63 | UGBC63P | UGPU63TZ | UGPU63CU | UGAS5848 | - |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3 = Closed bushing
(Ød = Standard: 1,0-1,2-1,5-2,0-2,5-3,0-3,5-4,0)
3/P = Bushing with machinable prolungation
(Ød = Standard: 1,2-1,5-2,0-2,5-3,0-3,5-4,0)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
8 = Head nozzle coil heater (REPNS650)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard : 16 - On request: 17
P = Standard: 25 - On request: 0,5 ÷ 24.9
