INJECTION VESTIGE: T3
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 | 4/0 - 4/1 | 6 | 7 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UGER5501MA | 0/1 | C=54 L=94 | UGCR5501M | REPNSP5001 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5501SA | 0/1 | C=54 L=96 | UGCR5501S | REPNSP5001 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5502MA | 0/1 | C=84 L=124 | UGCR5502M | REPNSP5002 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5502SA | 0/1 | C=84 L=126 | UGCR5502S | REPNSP5002 | S151051000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5503MA | 0/1 | C=114 L=154 | UGCR5503M | REPNSP5003 | S151551000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5503SA | 0/1 | C=114 L=156 | UGCR5503S | REPNSP5003 | S151551000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5504MA | 0/1 | C=164 L=204 | UGCR5504M | REPNSP5004 | S152051000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5504SA | 0/1 | C=164 L=206 | UGCR5504S | REPNSP5004 | S152051000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |
| UGER5505MA | 0/1 | C=214 L=254 | UGCR5505M | REPNSP5005 | S152551000J | UGBC540 | UGPU53TZ | UGPU53CU | - | UGACOR14 |
| UGER5505SA | 0/1 | C=214 L=256 | UGCR5505S | REPNSP5005 | S152551000J | UGBC540 | UGPU53TZ | UGPU53CU | UGAS4937 | - |

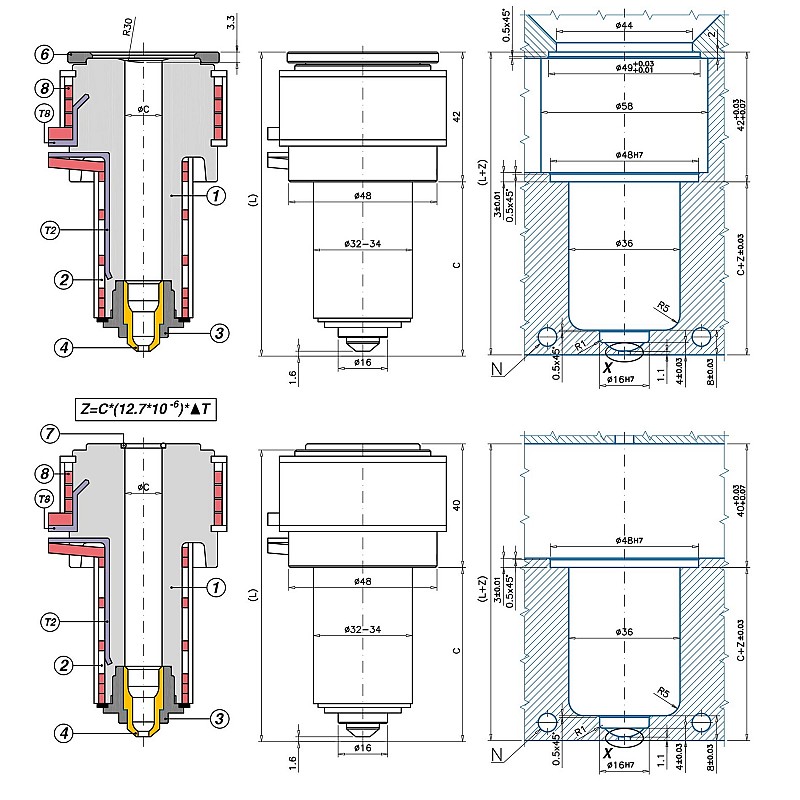

1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3= Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
8 = Head nozzle coil heater (REPNS550)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard : 12 - On request: 13

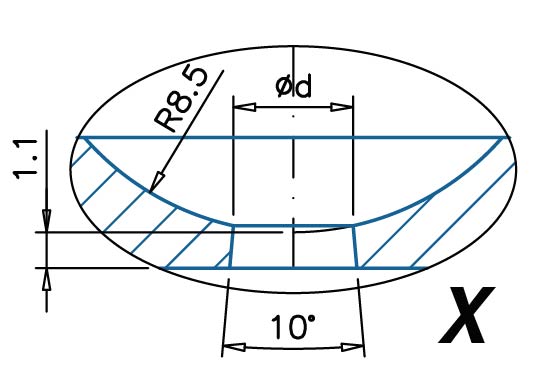

Ød = standard: 1,0÷3,7
