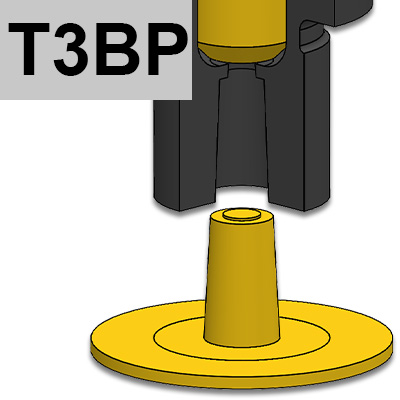

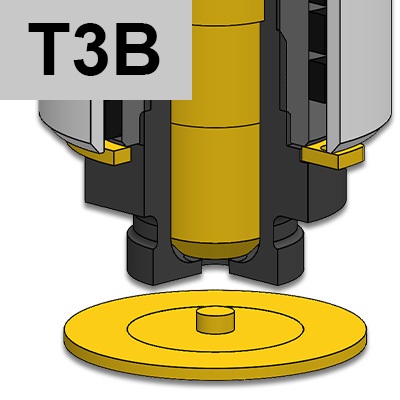

INJECTION VESTIGE: T3B / T3BP
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON SPRUES (T3BP).
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 5 | 6 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UGER3651MA | -/P 0/1 | C=59 L=89 | UGCR3501M | REPNSP3001 | S151051000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3651SA | -/P 0/1 | C=59 L=91 | UGCR3501S | REPNSP3001 | S151051000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
| UGER3652MA | -/P 0/1 | C=89 L=119 | UGCR3502M | REPNSP3002 | S151551000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3652SA | -/P 0/1 | C=89 L=121 | UGCR3502S | REPNSP3002 | S151551000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
| UGER3653MA | -/P 0/1 | C=119 L=149 | UGCR3503M | REPNSP3003 | S151551000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3653SA | -/P 0/1 | C=119 L=151 | UGCR3503S | REPNSP3003 | S151551000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
| UGER3654MA | -/P 0/1 | C=159 L=189 | UGCR3504M | REPNSP3004 | S102051000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | - |
| UGER3654SA | -/P 0/1 | C=159 L=191 | UGCR3504S | REPNSP3004 | S102051000J | UGBC313 | UGBC313P | UGPU325TZ | UGPU325CU | UGBE300AR | UGAS3530 |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3 = Closed bushing
(Ød = Standard: 1,0-1,2-1,5-2,0-2,5-3,0)
3/P = Bushing with machinable prolungation
(Ød = Standard: 1,2-1,5-2,0-2,5-3,0)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
5 = Copper ring
6 = Centering ring
8 = Head nozzle coil heater (REPNS350)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard : 6 - On request: 7
P = Standard: 20 - On request: 0,5 ÷ 19.9
O-RING on request
