INJECTION VESTIGE: T3
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS.
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 | 4/0 - 4/1 | 6 | 7 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UGER4501MA | 0/1 | C=54 L=89 | UGCR4501M | REPNSP4001 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4501SA | 0/1 | C=54 L=91 | UGCR4501S | REPNSP4001 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4502MA | 0/1 | C=84 L=119 | UGCR4502M | REPNSP4002 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4502SA | 0/1 | C=84 L=121 | UGCR4502S | REPNSP4002 | S151051000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4503MA | 0/1 | C=114 L=149 | UGCR4503M | REPNSP4003 | S151551000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4503SA | 0/1 | C=114 L=151 | UGCR4503S | REPNSP4003 | S151551000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4504MA | 0/1 | C=164 L=199 | UGCR4504M | REPNSP4004 | S152051000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4504SA | 0/1 | C=164 L=201 | UGCR4504S | REPNSP4004 | S152051000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
| UGER4505MA | 0/1 | C=214 L=249 | UGCR4505M | REPNSP4005 | S152551000J | UGBC440 | UGPU43TZ | UGPU43CU | - | UGACOR11 |
| UGER4505SA | 0/1 | C=214 L=251 | UGCR4505S | REPNSP4005 | S152551000J | UGBC440 | UGPU43TZ | UGPU43CU | UGAS3530 | - |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3= Open bushing
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
8 = Head nozzle coil heater (REPNS450)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard: 9 - On request: 10

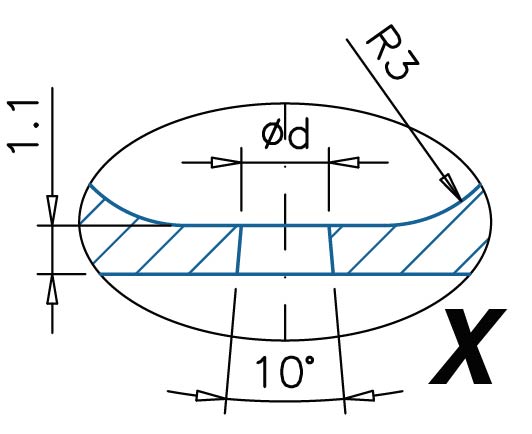

Ød = Standard: 1,0÷3,3
