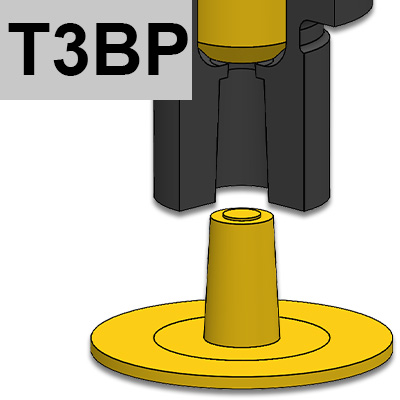

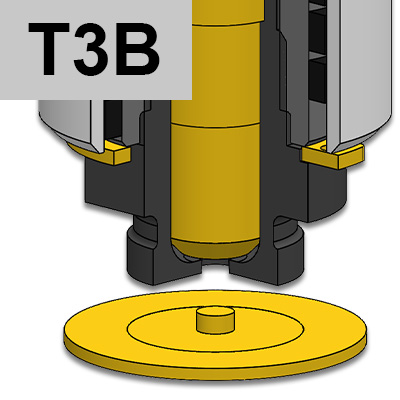

INJECTION VESTIGE: T3B / T3BP
NOZZLES WITH HEATED HEAD FOR DIRECT MOLDING ON PARTS WHERE IS NOT IMPORTANT THE AESTHETIC APPEARANCE OF THE INJECTION WITNESS (T3B), OR ON SPRUES (T3BP).
- YES: frequent color change
- YES: intense colours
- YES: abrasive reinforcements (choose the 4/0 tip)
- YES: SINGLE and MULTI-CAVITY applications
- NO: plastics that leave stringings / droolings while mould opens
| Code | C - L | 1 | 2 | T(2) | 3 - 3/P | 4/0 - 4/1 | 6 | 7 | 8 | T(8) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UGER5601MA | -/P 0/1 | C=54 L=94 | UGCR5501M | REPNSP5001 | S151051000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | - | UGACOR14 | REPNS550 | S151051000J |
| UGER5601SA | -/P 0/1 | C=54 L=96 | UGCR5501S | REPNSP5001 | S151051000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | UGAS4937 | - | REPNS550 | S151051000J |
| UGER5602MA | -/P 0/1 | C=84 L=124 | UGCR5502M | REPNSP5002 | S151051000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | - | UGACOR14 | REPNS550 | S151051000J |
| UGER5602SA | -/P 0/1 | C=84 L=126 | UGCR5502S | REPNSP5002 | S151051000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | UGAS4937 | - | REPNS550 | S151051000J |
| UGER5603MA | -/P 0/1 | C=114 L=154 | UGCR5503M | REPNSP5003 | S151551000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | - | UGACOR14 | REPNS550 | S151051000J |
| UGER5603SA | -/P 0/1 | C=114 L=156 | UGCR5503S | REPNSP5003 | S151551000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | UGAS4937 | - | REPNS550 | S151051000J |
| UGER5604MA | -/P 0/1 | C=164 L=204 | UGCR5504M | REPNSP5004 | S152051000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | - | UGACOR14 | REPNS550 | S151051000J |
| UGER5604SA | -/P 0/1 | C=164 L=206 | UGCR5504S | REPNSP5004 | S152051000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | UGAS4937 | - | REPNS550 | S151051000J |
| UGER5605MA | -/P 0/1 | C=214 L=254 | UGCR5505M | REPNSP5005 | S152551000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | - | UGACOR14 | REPNS550 | S151051000J |
| UGER5605SA | -/P 0/1 | C=214 L=256 | UGCR5505S | REPNSP5005 | S152551000J | UGBC53 | UGBC53P | UGPU53TZ | UGPU53CU | UGAS4937 | - | REPNS550 | S151051000J |
1 = Nozzle body
(M=MultiCavity / S=Single Cavity)
2= Coil heater
T(2) = J thermocouple
3 = Closed bushing
(Ød = Standard: 1,0-1,2-1,5-2,0-2,5-3,0-3,5)
3/P = Bushing with machinable prolungation
(Ød = Standard: 1,2-1,5-2,0-2,5-3,0-3,5)
4/0 = Abrasive charges tip
4/1 = Cu-Be tip
6 = Centering ring
7 = O-RING
8 = Head nozzle coil heater (REPNS550)
T(8)=Nozzle head J thermocouple (S151051000J)
ØC = Standard : 12 - On request: 13
P = Standard: 25 - On request: 0,5 ÷ 24.9
